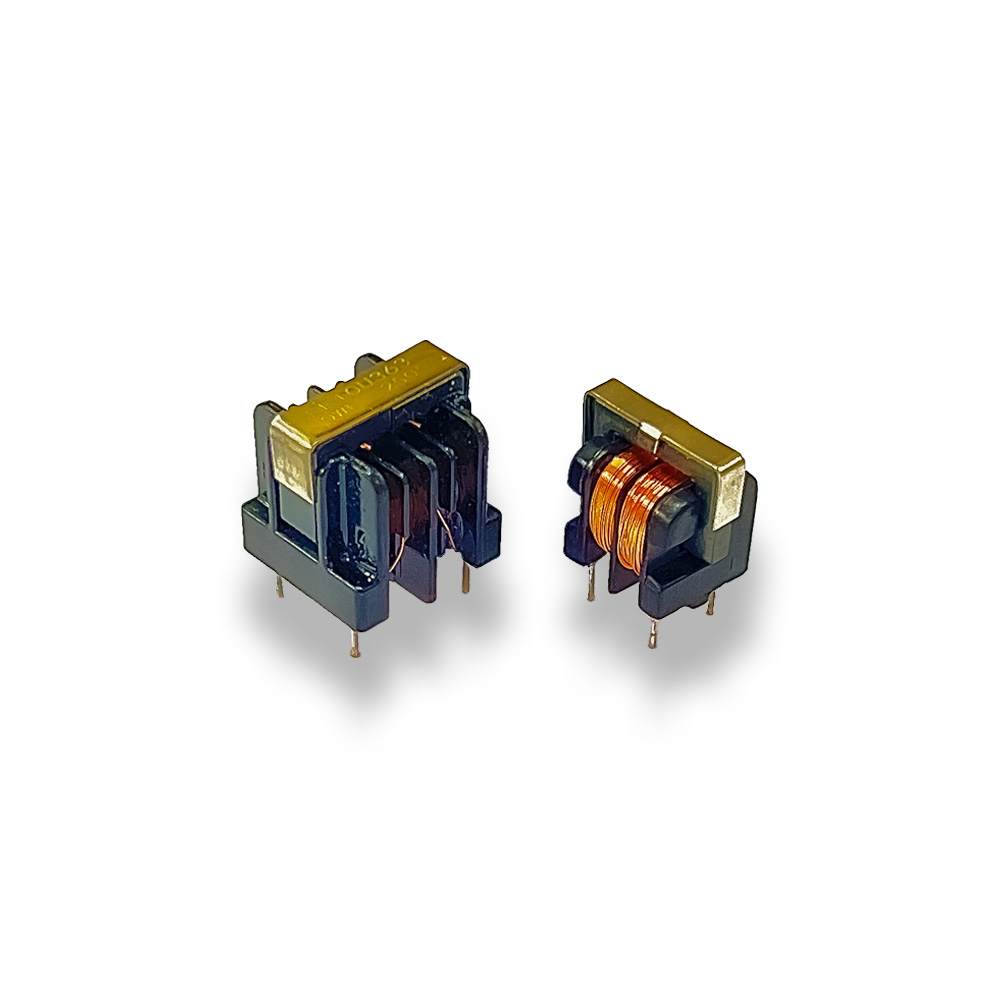

UU and ET type CMC series
THT
Features
- Rated voltage: AC/DC: 250V
- Isolation Voltage: AC 2000V. 60s
- Flat wire winding
- Insulation Resistance: 100Mohm Min. DC 500V
- Operating Current range: 1A to 30A
- Great EMI performance during 1MHZ to 30MHZ
- RoHS & REACH compliant
Applications
- Suitable applications: 20W to 1500w power converters
- EMI Filter circuits
- Televisions
- EMC circuits
All series
| Series ID | A | B | C | Inductance (UH) | Test condition | DCR Max (mOhm) | Irms (A) Typ. | Series spec |
|---|---|---|---|---|---|---|---|---|
| OWCMU10V | ||||||||
| OWCMU11V | ||||||||
| OWCMU16V | ||||||||
| OWCMU11VB | ||||||||
| OWCMU16VB | ||||||||
| OWCMU11H | ||||||||
| OWCMU16H | ||||||||
| OWCMB20H | ||||||||
| OWCMB24H | ||||||||
| OWCMB28H | ||||||||
| OWCMB20V | ||||||||
| OWCMB24V | ||||||||
| OWCMB28V | ||||||||
| OWCMB20VQ |
