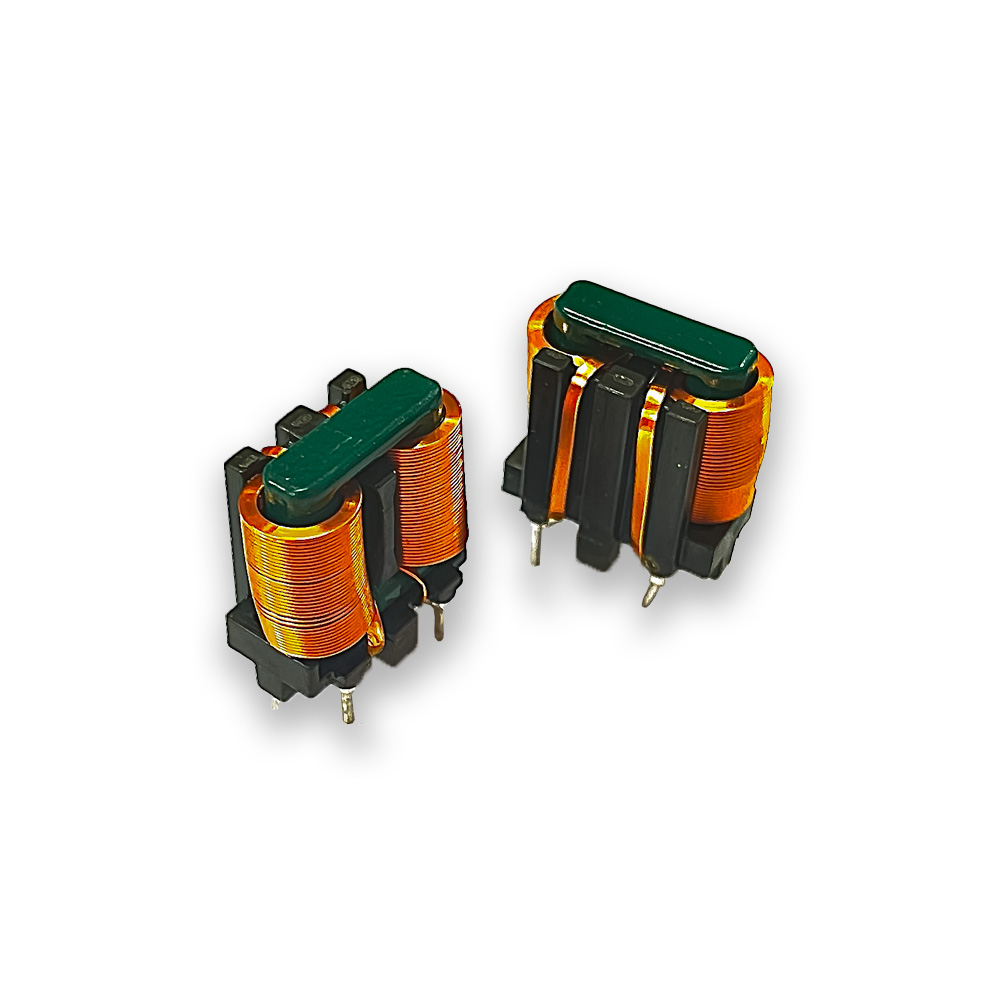

SQ type CMC series
SMD & THT
Features
- Rated voltage: AC/DC: 250V
- Isolation Voltage: AC 2000V. 60s
- Flat wire winding
- Insulation Resistance: 100Mohm Min. DC 500V
- Operating Current range: 1A to 30A
- Great EMI performance during 1MHZ to 30MHZ
- RoHS & REACH compliant
Applications
- Televisions
- Suitable application: 20W to 1500w power switch devices
- EMC circuits
- AC EMI filter devices
All series
| Series ID | A | B | C | Inductance (UH) | Test condition | DCR Max (mOhm) | Irms (A) Typ. | Series spec |
|---|---|---|---|---|---|---|---|---|
| OWISQ1010V | ||||||||
| OWISQ1212H | ||||||||
| OWISQ1212V | ||||||||
| OWISQ1515H | ||||||||
| OWISQ1515V | ||||||||
| OWISQ1918H | ||||||||
| OWISQ1918V | ||||||||
| OWISQ2018V | ||||||||
| OWISQ2418H | ||||||||
| OWISQ2418V | ||||||||
| OWISQ2820V | ||||||||
| OWISQ3325H | ||||||||
| OWISQ3325V |
