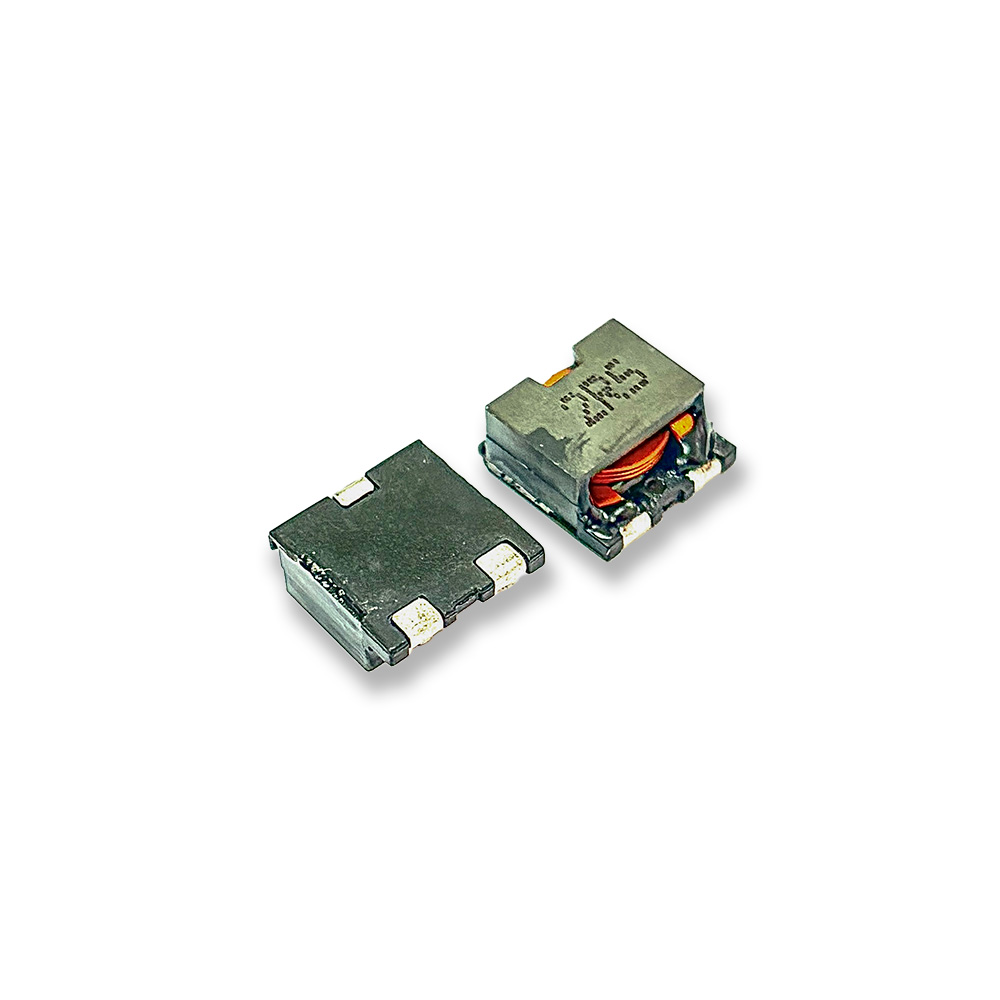

Flat wire wind composite inductor series
Non-shielded
Features
- Flat wire wound assemble inductor
- Stability characteristics on drop test
- High saturation
- RoHS and REACH compliant
Applications
- Power supply for VTR and OA equipment
- LCD television sets
- Notebook and PCs
- Portable communication equipment
- DC/DC converters
All series
| Series ID | A | B | C | Inductance (UH) | DCR Max (mOhm) | Isat (A) Typ. | Irms (A) Typ. | Series spec |
|---|---|---|---|---|---|---|---|---|
| OWIEP125H | 12.9 | 12.9 | 5.8 | 1.0±20% – 7.2±20% | 2.5 – 13.5 | 7.8 – 20.0 | 8.8 – 20.0 | |
| OWIEP147S | 14.9 | 15.0 | 8.3 | 0.4±30% – 9.5±20% | 2.1 – 13.3 | 11.2 – 52.8 | 9.3 – 23.0 | |
| OWIEP0740L | 7.1 | 7.5 | 4.0 | 6.5±20% | 23.65 | 6.0 | 6.0 | |
| OWIEP0750L | 7.3 | 7.4 | 5.0 | 4.7±20% | 21.45 | 7.0 | 6.0 | |
| OWIEP1050L | 10.7 | 11.0 | 5.0 | 10±20% | 17.93 | 8.5 | 7.2 | |
| OWIEP2212L | 23.0 | 23.5 | 12.4 | 12±20% – 47±20% | 4.73 – 21.12 | 12-25 | 9-19 | |
| OWIEQ35LP | 39.3±1.0 | 35.8±1.0 | 28.0 | 6.8 – 150 | 2.95 | 4.18 – 92 | 34 | |
| OWHPR2823D | 27.5 | 16.5 | 23.0 | 3.3 – 33.0 | 2.6 | 7.5 – 95.0 | 19.0 |
