Wireless charging coil series

← Back to overview

Features

  • No Heating Shrinking Tubing
  • Kapton Tape: 0.025×4.0mm
  • Ferrite board thickness: 1.0 – 3.4mm±0.2mm

Applications

  • Various wireless charging devices
    • Mobile Phones
    • Speakers
    • Watches
    • Lighting
    • Etc.

Dimensions of OWC2723CF3.4-110J Watch Wireless Charging Coil

A(mm)B(mm)C(mm)Series spec.
27.0±0.225.6±0.25.4 Max.
Doc-text Doc-text Spec

Electrical characteristics of OWC2723CF3.4-110J Watch Wireless Charging Coil

ItemTerminal no.SpecificationTest condition
InductanceLead (S-F)11.0uH±5%100KHz 1V
Rs-ResistanceLead (S-F)130mΩ±20%100KHz 1V
Rdc-ResistanceLead (S-F)100mΩ Max20°C
Rated Current IRLead (S-F)A Max.–

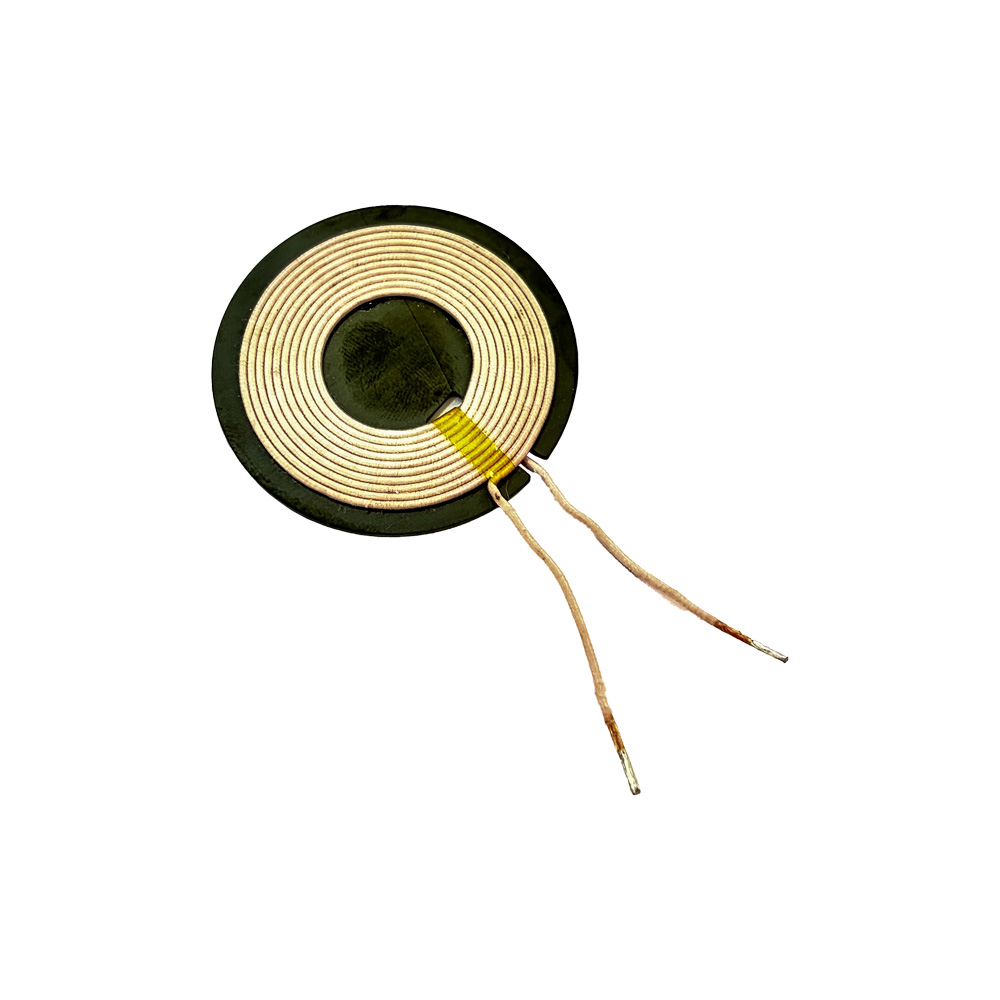

Dimensions of OWC5043CF1.0-6R3K Wireless Charging Coil _50mm OD Circle type

A(mm)B(mm)C(mm)Series spec.
49.5±1.043.0 Ref.20.5±1.0
Doc-text Doc-text Spec

Electrical characteristics of OWC5043CF1.0-6R3K Wireless Charging Coil _50mm OD Circle type

ItemTerminal no.SpecificationTest condition
InductanceLead (S-F)6.3uH±10%100KHz 1V
Q valueLead (S-F)70 Min.100KHz 1V
DCRLead (S-F)50mΩ Max20°C
Rated Current IRLead (S-F)12A Max.–
Saturation current IsatLead (S-F)15A Typ.–
SRF(MHz)Lead (S-F)10–
