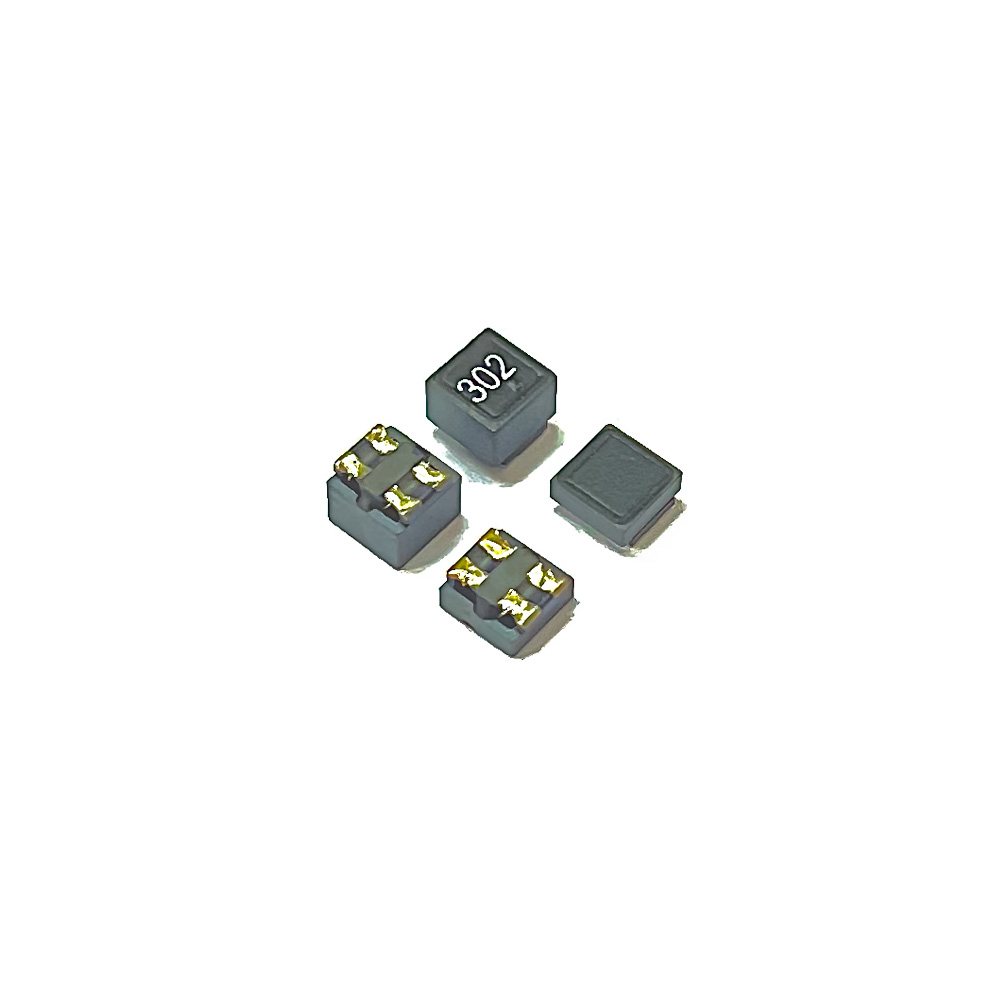

Shielded chip Common Mode Choke coil series
SMD
Features
- Wire wound construction DR + RI Core type Common Mode Choke
- Best EMI suppression effect
- High impedance
- High rated current
- Low DCR
Applications
- Preventive measure against common mode noise radiation emissions from power-lines and alike
- Best for high current circuit – eg. car, wireless charging and power device design
- EMI circuit power line
All series
| Series ID | A | B | C | Impedance (Ohm) | Test freq. (MHz) | DCR Max (mOhm) | Irms (A) Typ. | Series spec |
|---|---|---|---|---|---|---|---|---|
| OWICM5025RF | ||||||||
| OWICM5040RF |
