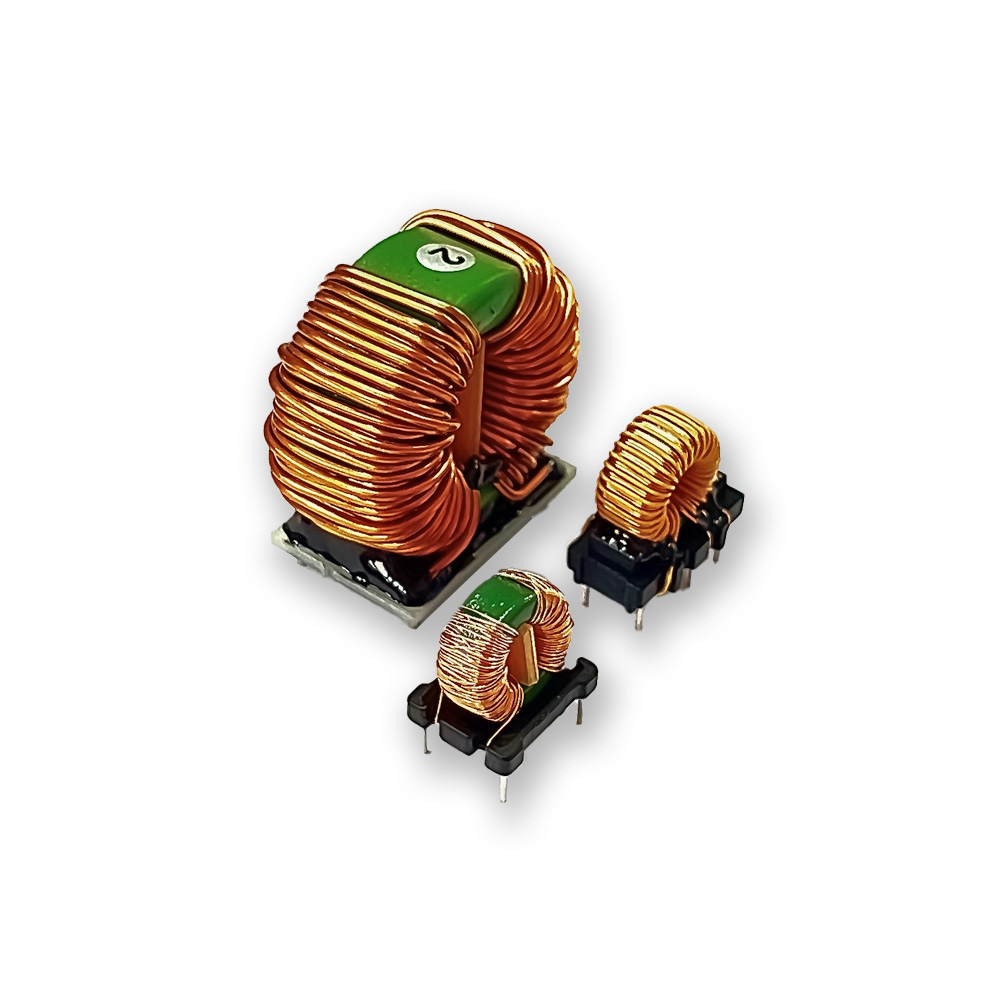

Ferrite and Nanocrystalline core type CMC series

SMD & THT

← Back to overview

Features

Rated voltage: AC/DC: 250 – 270V
Isolation Voltage: AC 1500V. 60s
Flat wire / separate winding
Insulation Resistance: 100Mohm Min. DC 500V
Operating Current range: 0.3A to 35A
Great EMI performance during 100KHZ to 30MHZ
RoHS & REACH compliant

Applications

Suitable applications: 20W to 1500W power converters
Filtering
Power lines AC or DC
Industrial applications

All values and sizes

All series

All OWPT OWLPT OWKPT OWJPT OWAPT

Series ID	A(mm)	B(mm)	C(mm)	Inductance (mH)	Test condition	DCR Max (mOhm)	Impedance (KΩ)	Rated Current (A)	Hi-pot W1 to W2	Series spec
OWPT1264SV	15.5	16.0	5.0	1.0 – 10.0	1KHz 0.25V	25 – 435	–	0.3 – 2.3	1000Vac
OWPT1495SV	18.0	18.0	5.0	1.0 – 10.0	1KHz 0.25V	0.6 – 4.0	–	0.6 – 4.0	1000Vac
OWPT1695SV	21.0	21.0	5.0	1.0 – 10.0	1KHz 0.25V	1.0 – 5.0	–	1.0 – 5.0	1000Vac
OWPT18107SV	23.0	24.5	5.0	1.0 – 10.0	1KHz 0.25V	1.6 – 7.0	–	1.6 – 7.0	1000Vac
OWPT24148SV	28.0	27.5	5.0	1.0 – 10.0	1KHz 0.25V	2.7 – 10.0	–	2.7 – 10.0	1000Vac
OWPT221410SV	29.0	28.0	5.0	1.0 – 10.0	1KHz 0.25V	3.0 – 14.0	–	3.0 – 14.0	1000Vac
OWPT251510SV	33.0	32.0	5.0	1.0 – 10.0	1KHz 0.25V	4.0 – 16.0	–	4.0 – 16.0	1000Vac
OWPT251512SV	33.0	34.0	5.0	1.0 – 10.0	1KHz 0.25V	5.0 – 8.0	–	5.0 – 8.0	1000Vac
OWPT311913SV	38.0	37.0	5.0	1.0 – 10.0	1KHz 0.25V	8.0 – 10.0	–	8.0 – 10.0	1000Vac
OWPT372215SV	45.0	45.0	5.0	1.0 – 10.0	1KHz 0.25V	10.0 – 16.0	–	10.0 – 16.0	1000Vac
OWPT1264SH	15.0	15.0	5.0	1.0 – 10.0	1KHz 0.25V	0.3 – 2.3	–	0.3 – 2.3	1000Vac
OWPT1495SH	18.0	17.0	5.0	1.0 – 10.0	1KHz 0.25V	0.6 – 4.0	–	0.6 – 4.0	1000Vac
OWPT1695SH	20.0	20.0	5.0	1.0 – 10.0	1KHz 0.25V	1.0 – 5.0	–	1.0 – 5.0	1000Vac
OWPT18107SH	23.0	21.0	5.0	1.0 – 10.0	1KHz 0.25V	1.6 – 7.0	–	1.6 – 7.0	1000Vac
OWPT22148SH	28.0	29.0	5.0	1.0 – 10.0	1KHz 0.25V	2.7 – 10.0	–	2.7 – 10.0	1000Vac
OWPT221410SH	28.0	29.0	5.0	1.0 – 10.0	1KHz 0.25V	3.0 – 14.0	–	3.0 – 14.0	1000Vac
OWPT251510SH	31.0	30.0	5.0	1.0 – 10.0	1KHz 0.25V	4.0 – 16.0	–	4.0 – 16.0	1000Vac
OWPT251512SH	31.0	33.0	5.0	1.0 – 10.0	1KHz 0.25V	5.0 – 8.0	–	5.0 – 8.0	1000Vac
OWPT311913SH	38.0	39.0	5.0	1.0 – 10.0	1KHz 0.25V	8.0 – 10.0	–	8.0 – 10.0	1000Vac
OWPT372215SH	45.0	45.0	5.0	1.0 – 10.0	1KHz 0.25V	10.0 – 16.0	–	10.0 – 16.0	1000Vac
OWLPT130805S	15.0	7.5	18.0	1.0 – 39.0	10KHz 0.1V	25.9 – 880.0	3.39 – 16.02K	0.3 – 2.0	1500Vac	Spec
OWLPT140809S	17.5	13.0	22.0	1.0 – 20.0	10KHz 0.1V	18.4 – 430.0	2.79 – 12.32K	0.5 – 3.0	1500Vac	Spec
OWLPT181007S	23.0	15.0	22.0	1.0 – 20.0	10KHz 0.1V	9.0 – 179.0	1.48 – 9.78K	1.5 – 6.0	1500Vac	Spec
OWLPT221412S	27.0	18.0	24.0	1.0 – 20.0	10KHz 0.1V	8.5 – 136.5	3.04 – 16.16K	2.0 – 7.5	1500Vac	Spec
OWLPT251515S	30.0	23.0	28.0	1.0 – 33.0	10KHz 0.1V	6.0 – 128.5	1.75 – 10.87K	3.0 – 12.0	1500Vac	Spec
OWLPT372215S	45.0	25.0	41.0	0.5 – 1.8	10KHz 0.1V	2.0 – 7.5	0.73 – 2.68K	14.0 – 35.0	1500Vac	Spec
OWKPT1264S	18.5	13.5	20.5	0.2 – 47.0	10 – 100KHz 0.1V	7.0 – 1360.0	0.42 – 2.92K	0.3 – 6.0	1500Vac	Spec
OWKPT1264P	18.5	13.5	20.5	0.2 – 47.0	10 – 100KHz 0.1V	7.0 – 1360.0	0.42 – 2.92K	0.3 – 6.0	3750Vac	Spec
OWJPT1264S	18.5	13.5	20.5	0.4 – 47.0	10 – 100KHz 0.1V	12.5 – 1360.0	1.63 – 2.92K	0.3 – 2.6	1500Vac	Spec
OWJPT1697S	23.0	15.8	26.0	1.2 – 68.0	100KHz 0.1V	19.5 – 1210.0	1.43 – 2.31K	0.3 – 3.0	1500Vac	Spec
OWJPT221410S	32.0	18.0	35.0	0.5 – 56.0	10 – 100KHz 0.1V	6.0 – 870.0	1.02 – 2.15K	0.5 – 8.0	1500Vac	Spec
OWAPT1264S	18.0	18.0	13.0	0.7 – 39.0	10KHz 0.1V	15.0 – 1260.0	1.69 – 2.92K	0.4 – 4.0	1500Vac	Spec
OWAPT1695S	22.5	23.5	15.5	1.2 – 47.0	10KHz 0.1V	20.0 – 747.0	1.72 – 2.28K	0.4 – 3.0	1500Vac	Spec
OWAPT18107S	28.0	28.0	18.0	2.7 – 27.0	10KHz 0.1V	30.0 – 257.0	1.72 – 2.30K	1.0 – 3.0	1500Vac	Spec
OWAPT22148S	33.5	33.5	20.0	1.8 – 27.0	10KHz 0.1V	15.0 – 228.0	1.64 – 2.38K	0.4 – 6.0	1500Vac	Spec
OWAPT311913S	42.5	43.0	25.0	0.56 – 68.0	10KHz 0.1V	5.0 – 510.0	0.91 – 2.20K	1.0 – 16.0	1500Vac	Spec
OWAPT1264P	18.0	18.0	13.0	0.7 – 39.0	10KHz 0.1V	15.0 – 1260.0	1.69 – 2.92K	0.4 – 4.0	3750Vac	Spec
OWAPT1695P	22.5	23.5	15.5	1.2 – 47.0	10KHz 0.1V	20.0 – 747.0	1.72 – 2.28K	0.4 – 3.0	3750Vac	Spec
OWAPT18107P	28.0	28.0	18.0	2.7 – 27.0	10KHz 0.1V	30.0 – 257.0	1.72 – 2.30K	1.0- 3.0	3750Vac	Spec
OWAPT22148P	33.5	33.5	20.0	1.8 – 27.0	10KHz 0.1V	15.0 – 228.0	1.64 – 2.38K	0.4 – 6.0	3750Vac	Spec
OWAPT311913P	42.5	43.0	25.0	0.56 – 68.0	10KHz 0.1V	5.0 – 510.0	0.91 – 2.20K	1.0 – 16.0	3750Vac	Spec

Series ID	A(mm)	B(mm)	C(mm)	Inductance (mH)	Test condition	DCR Max (mOhm)	Impedance (MHz)	Rated Current (A)	Hi-pot W1 to W2
OWPT1264SV	15.5	16.0	5.0	1.0 – 10.0	1KHz 0.25V	25 – 435	–	0.3 – 2.3	1000Vac
OWPT1495SV	18.0	18.0	5.0	1.0 – 10.0	1KHz 0.25V	0.6 – 4.0	–	0.6 – 4.0	1000Vac
OWPT1695SV	21.0	21.0	5.0	1.0 – 10.0	1KHz 0.25V	1.0 – 5.0	–	1.0 – 5.0	1000Vac
OWPT18107SV	23.0	24.5	5.0	1.0 – 10.0	1KHz 0.25V	1.6 – 7.0	–	1.6 – 7.0	1000Vac
OWPT24148SV	28.0	27.5	5.0	1.0 – 10.0	1KHz 0.25V	2.7 – 10.0	–	2.7 – 10.0	1000Vac
OWPT221410SV	29.0	28.0	5.0	1.0 – 10.0	1KHz 0.25V	3.0 – 14.0	–	3.0 – 14.0	1000Vac
OWPT251510SV	33.0	32.0	5.0	1.0 – 10.0	1KHz 0.25V	4.0 – 16.0	–	4.0 – 16.0	1000Vac
OWPT251512SV	33.0	34.0	5.0	1.0 – 10.0	1KHz 0.25V	5.0 – 8.0	–	5.0 – 8.0	1000Vac
OWPT311913SV	38.0	37.0	5.0	1.0 – 10.0	1KHz 0.25V	8.0 – 10.0	–	8.0 – 10.0	1000Vac
OWPT372215SV	45.0	45.0	5.0	1.0 – 10.0	1KHz 0.25V	10.0 – 16.0	–	10.0 – 16.0	1000Vac
OWPT1264SH	15.0	15.0	5.0	1.0 – 10.0	1KHz 0.25V	0.3 – 2.3	–	0.3 – 2.3	1000Vac
OWPT1495SH	18.0	17.0	5.0	1.0 – 10.0	1KHz 0.25V	0.6 – 4.0	–	0.6 – 4.0	1000Vac
OWPT1695SH	20.0	20.0	5.0	1.0 – 10.0	1KHz 0.25V	1.0 – 5.0	–	1.0 – 5.0	1000Vac
OWPT18107SH	23.0	21.0	5.0	1.0 – 10.0	1KHz 0.25V	1.6 – 7.0	–	1.6 – 7.0	1000Vac
OWPT22148SH	28.0	29.0	5.0	1.0 – 10.0	1KHz 0.25V	2.7 – 10.0	–	2.7 – 10.0	1000Vac
OWPT221410SH	28.0	29.0	5.0	1.0 – 10.0	1KHz 0.25V	3.0 – 14.0	–	3.0 – 14.0	1000Vac
OWPT251510SH	31.0	30.0	5.0	1.0 – 10.0	1KHz 0.25V	4.0 – 16.0	–	4.0 – 16.0	1000Vac
OWPT251512SH	31.0	33.0	5.0	1.0 – 10.0	1KHz 0.25V	5.0 – 8.0	–	5.0 – 8.0	1000Vac
OWPT311913SH	38.0	39.0	5.0	1.0 – 10.0	1KHz 0.25V	8.0 – 10.0	–	8.0 – 10.0	1000Vac
OWPT372215SH	45.0	45.0	5.0	1.0 – 10.0	1KHz 0.25V	10.0 – 16.0	–	10.0 – 16.0	1000Vac

Series ID	A(mm)	B(mm)	C(mm)	Inductance (mH)	Test condition	DCR Max (mOhm)	Impedance (MHz)	Rated Current (A)	Hi-pot W1 to W2	Series spec
OWLPT130805S	15.0	7.5	18.0	1.0 – 39.0	10KHz 0.1V	25.9 – 880.0	3.39 – 16.02	0.3 – 2.0	1500Vac	Spec
OWLPT140809S	17.5	13.0	22.0	1.0 – 20.0	10KHz 0.1V	18.4 – 430.0	2.79 – 12.32	0.5 – 3.0	1500Vac	Spec
OWLPT181007S	23.0	15.0	22.0	1.0 – 20.0	10KHz 0.1V	9.0 – 179.0	1.48 – 9.78	1.5 – 6.0	1500Vac	Spec
OWLPT221412S	27.0	18.0	24.0	1.0 – 20.0	10KHz 0.1V	8.5 – 136.5	3.04 – 16.16	2.0 – 7.5	1500Vac	Spec
OWLPT251515S	30.0	23.0	28.0	1.0 – 33.0	10KHz 0.1V	6.0 – 128.5	1.75 – 10.87	3.0 – 12.0	1500Vac	Spec
OWLPT372215S	45.0	25.0	41.0	0.5 – 1.8	10KHz 0.1V	2.0 – 7.5	0.73 – 2.68	14.0 – 35.0	1500Vac	Spec

Series ID	A(mm)	B(mm)	C(mm)	Inductance (mH)	Test condition	DCR Max (mOhm)	Impedance (KΩ)	Rated Current (A)	Hi-pot W1 to W2	Series spec
OWKPT1264S	18.5	13.5	20.5	0.2 – 47	10 – 100KHz 0.1V	7.0 – 1360	0.42 – 2.92K	0.3 – 6.0	1500Vac	Spec
OWKPT1264P	18.5	13.5	20.5	0.2 – 47	10 – 100KHz 0.1V	7.0 – 1360	0.42 – 2.92K	0.3 – 6.0	3750Vac	Spec

Series ID	A(mm)	B(mm)	C(mm)	Inductance (mH)	Test condition	DCR Max (mOhm)	Impedance (KΩ)	Rated Current (A)	Hi-pot W1 to W2	Series spec
OWJPT1264S	18.5	13.5	20.5	0.4 – 47.0	10 – 100KHz 0.1V	12.5 – 1360.0	1.63 – 2.92K	0.3 – 2.6	1500Vac	Spec
OWJPT1697S	23.0	15.8	26.0	1.2 – 68.0	100KHz 0.1V	19.5 – 1210.0	1.43 – 2.31K	0.3 – 3.0	1500Vac	Spec
OWJPT221410S	32.0	18.0	35.0	0.5 – 56.0	10 – 100KHz 0.1V	6.0 – 870.0	1.02 – 2.15K	0.5 – 8.0	1500Vac	Spec

Series ID	A(mm)	B(mm)	C(mm)	Inductance (mH)	Test condition	DCR Max (mOhm)	Impedance (KΩ)	Rated Current (A)	Hi-pot W1 to W2	Series spec
OWAPT1264S	18.0	18.0	13.0	0.7 – 39.0	10KHz 0.1V	15.0 – 1260.0	1.69 – 2.92K	0.4 – 4.0	1500Vac	Spec
OWAPT1695S	22.5	23.5	15.5	1.2 – 47.0	10KHz 0.1V	20.0 – 747.0	1.72 – 2.28K	0.4 – 3.0	1500Vac	Spec
OWAPT18107S	28.0	28.0	18.0	2.7 – 27.0	10KHz 0.1V	30.0 – 257.0	1.72 – 2.30K	1.0 – 3.0	1500Vac	Spec
OWAPT22148S	33.5	33.5	20.0	1.8 – 27.0	10KHz 0.1V	15.0 – 228.0	1.64 – 2.38K	0.4 – 6.0	1500Vac	Spec
OWAPT311913S	42.5	43.0	25.0	0.56 – 68.0	10KHz 0.1V	5.0 – 510.0	0.91 – 2.20K	1.0 – 16.0	1500Vac	Spec
OWAPT1264P	18.0	18.0	13.0	0.7 – 39.0	10KHz 0.1V	15.0 – 1260.0	1.69 – 2.92K	0.4 – 4.0	3750Vac	Spec
OWAPT1695P	22.5	23.5	15.5	1.2 – 47.0	10KHz 0.1V	20.0 – 747.0	1.72 – 2.28K	0.4 – 3.0	3750Vac	Spec
OWAPT18107P	28.0	28.0	18.0	2.7 – 27.0	10KHz 0.1V	30.0 – 257.0	1.72 – 2.30K	1.0- 3.0	3750Vac	Spec
OWAPT22148P	33.5	33.5	20.0	1.8 – 27.0	10KHz 0.1V	15.0 – 228.0	1.64 – 2.38K	0.4 – 6.0	3750Vac	Spec
OWAPT311913P	42.5	43.0	25.0	0.56 – 68.0	10KHz 0.1V	5.0 – 510.0	0.91 – 2.20K	1.0 – 16.0	3750Vac	Spec
