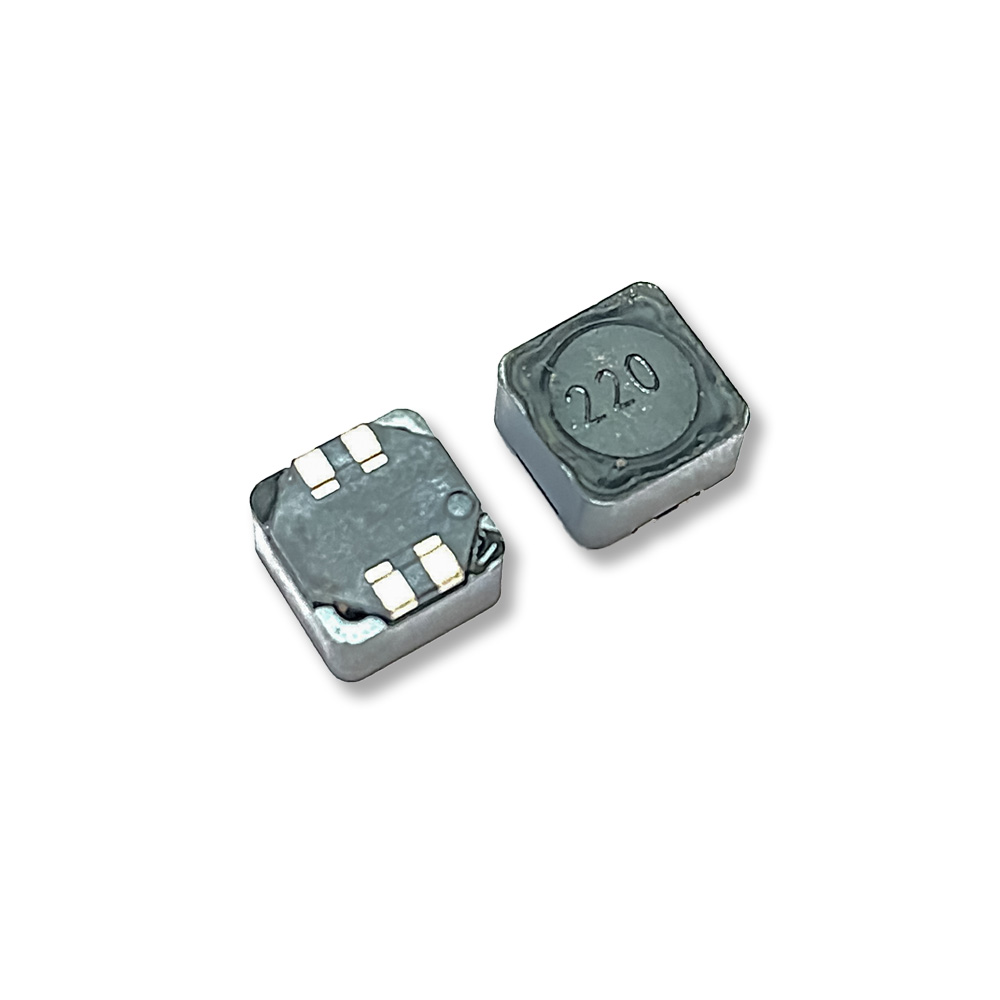

Coupling Inductor series
SMD
Features
- Shielded coupling inductor
- Two connection methods: Parallel and Series
- Directly connected electrode on ferrite core
- Highly accurate dimensions for SMT
- RoHS & REACH compliant
Applications
- Satellite communication systems
- TV and audio equipment
- Microwave equipment
All series
(Values are written as: Leads connected in Parallel / Leads connected in Series)
| Series ID | A(mm) | B(mm) | C(mm) | Inductance (UH) | DCR Max (mOhm) | Isat (A) Typ. | Irms (A) Typ. | Series spec |
|---|---|---|---|---|---|---|---|---|
| OWIRHB0704B | 7.30 ± 0.3 | 7.30 ± 0.3 | 4.8 | 2.5 – 1000 / 10 – 4000 | 19.8 – 5940 / 79.2 – 23760 | 0.25 – 3.89 / 0.12 – 1.95 | – | |
| OWIRHB125B | 12 ± 0.3 | 12 ± 0.3 | 6.5 | 4.7 – 1000 / 18.8 – 4000 | 19.8 – 1683 / 79.2 – 6732 | 0.45 – 6.48 / 0.26 – 3.06 | – | |
| OWIRHB127B | 12 ± 0.3 | 12 ± 0.3 | 8.5 | 4.7 – 1000 / 18.8 – 4000 | 20.9 – 1556 / 83.6 – 6226 | 0.54 – 6.66 / 0.27 – 3.24 | – |
